Overview
I made a fine-tuned machine learning model to accurately answer customer live chats as well as a trained human with up-to-date company policy and product information that was performant enough to converse with real customers in real time. I did this work over the summer of 2024. I chose to fine-tune GPT-4o because it was the best model that was released at the time while also showing sufficient capability to meet the project requirements. In this section I’ve described the data processing stage of the project where I turned unstructured data into machine-readable semi-structured data.
The problem
Historical customer-employee live chats were stored in a Gmail account on a mail server within a custom domain the company owned. Each email contained one full live chat conversation within the body of the email with irregular formatting including date and other metadata information surrounding the main live chat conversation. There were 5,000+ live chat conversations to be retrieved.
Reviewing the transcripts, I identified three distinct chat formats, each corresponding to a different date range.
Much of the data was over the Covid period, meaning many chats were obsolete or contained out-of-date company policy. Some chats were very short (only one conversation turn) or were malformed. Employee names and customer names needed to be anonymised.
OpenAI required training data to be structured in a .JSONL file structure.
What was achieved?
- Built a Python data pipeline for GPT-4o fine-tuning, parsing three historical livechat formats into a structured dataset of 5,000+ conversations and 74,000+ customer–staff messages.
- Implemented Google Workspace mailbox access through Google Cloud service-account authentication, domain-wide delegation and read-only Gmail OAuth scopes, with paginated email extraction.
- Developed programmatic quality filters to remove poor training data, including unanswered and short conversations, excluding 318 of 1,828 records in a verified filtering stage, alongside keyword, date-range and placeholder transformations.
- Produced a 765-conversation JSONL training dataset containing 8,774 dialogue messages, with speaker normalisation, conversation reconstruction and custom format-validation utilities.
Technical implementation
This technical implementation will discuss the Google Cloud authentication, Gmail live chat retrieval and parsing, and the first stage of processing to get the three distinct storage formats into one definable block in the same structure. Further technical details will be discussed in other posts for this project.
I used Google’s Python API libraries to connect to the company’s Google Workspace mailbox. Authentication used a Google Cloud service account with domain-wide delegation, allowing the application to act on behalf of the specified mailbox. I requested the Gmail.readonly OAuth scope because the pipeline only needed to retrieve messages.
The script identified the Gmail label containing the live chat transcripts and retrieved the associated message IDs. I implemented pagination using nextPageToken, requesting up to 500 message IDs per page and continuing until all pages had been retrieved. Each message was then fetched in full, and its base64-encoded body was decoded, handling both plain-text and HTML parts. This was an automation script that did not hit the rate limits of the Gmail API yet ran for 1-1.5 hours. I believe that the network Wi-Fi speed played a large role in slowing down the retrieval of these emails.

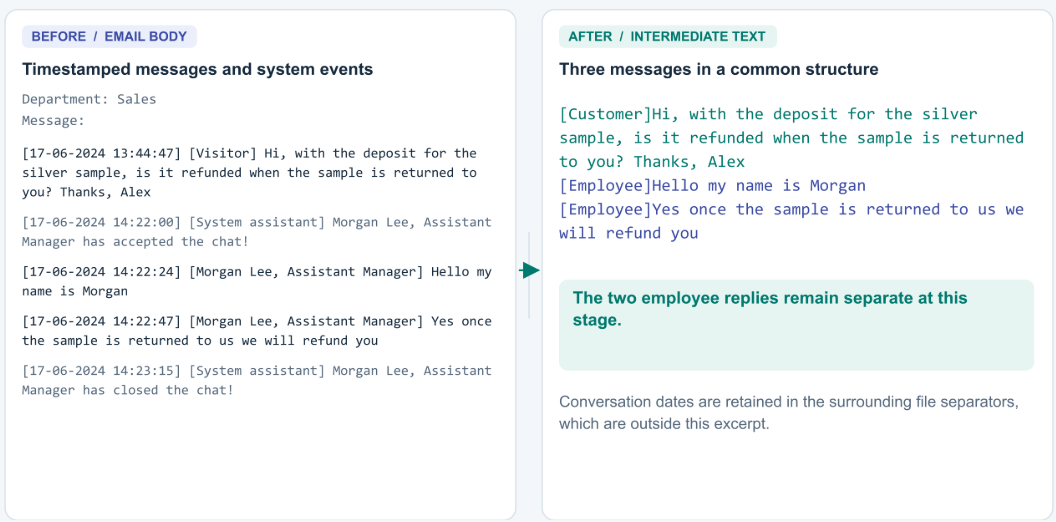

A single full customer-employee transcript was held within a single email body; once I had retrieved the transcripts, I wrote three parsers in Python, one for each of the live chat conversation storage formats. I kept local backup copies of the stored emails as I passed them through each stage of preprocessing.
